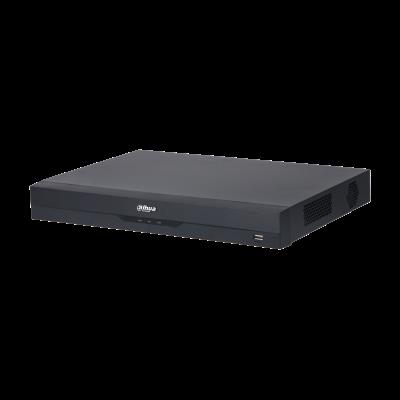

KAYIT CİHAZI DAHUA XVR4232AN-I3 32 KANAL HDCVI DVR

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Display

Interface

1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

2 SATA Ports, up to 8TB capacity for each disk

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB 3.0,1 USB 2.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

HDCVI Camera Input

32 Channel

IP Camera Input

16 Channel, each channel up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.264

Resolution

1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main Stream: 1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:CIF/QCIF(1~7fps)

Bit Rate

1Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Electrical

Power Supply

DC12V/4A

Power Consumption

<20W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH

Construction

Dimensions

1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")

Net Weight

2kg (4.41lb) (without HDD)

Gross Weight

3kg (6.61lb)

Installation

Desktop installation

Certifications

Certifications

FCC: CFR 47 Part 15 subpart B,2016

CE: EN 55032: 2015 (Class B), EN 55024 : 2010+a1:2015, EN 50130-4: 2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3 : 2013

UL: Coming soon
